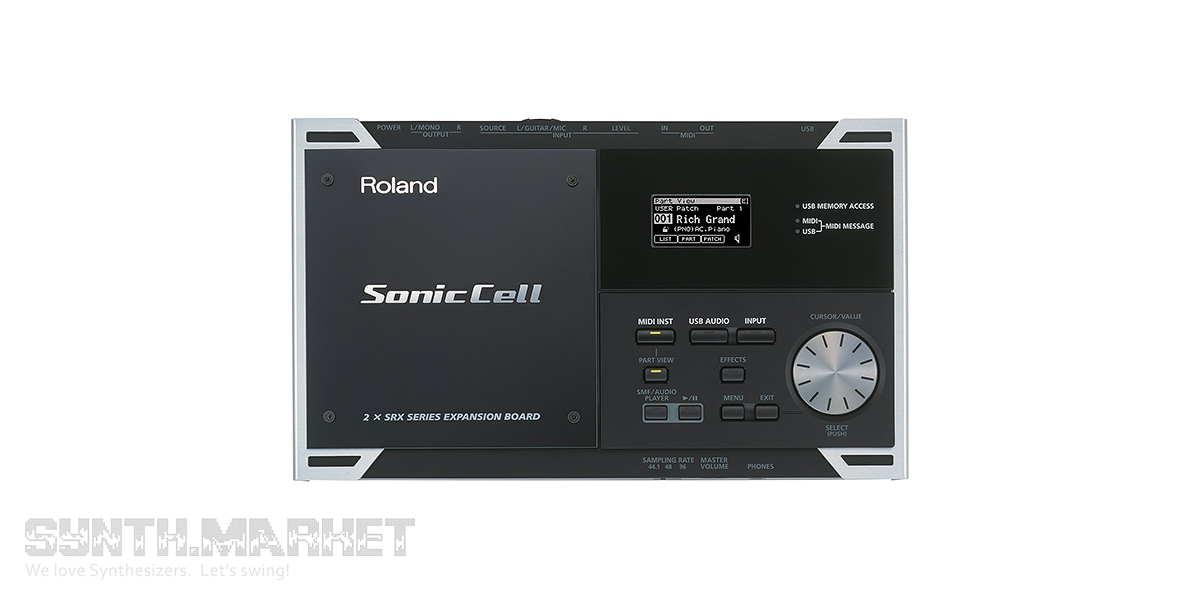

The Roland SonicCell is an expandable synthesizer module with audio interface. It represents a step forward in Roland's compact synthesizer module evolution, transforming from simple sound generation devices into a comprehensive, integrated music production solution. Building upon the foundation established by the JV-1010 and XV-2020, the SonicCell introduces groundbreaking functionality that positions it as "Superior Desktop Synthesis for the PC Generation" - a complete all-in-one synthesizer, audio interface, and multimedia playback system designed specifically for computer-based musicians and modern live performers.
Revolutionary Evolution from Previous Models
The SonicCell represents the most dramatic advancement in Roland's compact module series, introducing multiple paradigm-shifting features that go far beyond traditional sound generation:
Integrated Audio Interface Revolution: The most significant evolution is the built-in USB audio interface functionality, transforming the SonicCell from a simple sound module into a complete recording solution. This eliminates the need for separate audio interfaces, allowing direct recording into computers with professional 24-bit quality and support for 44.1/48/96 kHz sampling frequencies.
Multimedia Playback Capabilities: Unlike any previous Roland compact module, the SonicCell functions as a stand-alone multimedia player, capable of playing Standard MIDI Files (SMF) and audio files (WAV, AIFF, MP3) directly from USB memory devices. This transforms it into a "virtual backing band" for live performance applications.
Massive Sound Architecture Expansion: The SonicCell features 128-voice polyphony (double the XV-2020's effective polyphony) with 128MB of wave memory and a completely new waveform set featuring world-class acoustic instruments, drums, and percussion programmed for ultimate expression and realism.
Enhanced Visual Interface: The module introduces a 128 x 64 dot organic EL graphic display, a major upgrade from the simple numeric displays of previous models, providing comprehensive visual feedback for all functions.
Professional Audio Input Section: The SonicCell adds comprehensive audio input capabilities with dedicated MIC, GUITAR, and LINE inputs, including XLR connector with phantom power for professional microphones and hi-impedance guitar input, making it suitable for direct instrument recording.
Advanced Effects Architecture: The effects section has been completely redesigned with 3 multi-effects systems (78 types), 3 chorus types, 5 reverb types, 6 input effect types, and a 3-band compressor mastering effect - representing a massive expansion over previous models.
Dual USB Connectivity: The SonicCell features two USB ports - one for computer connectivity (USB MIDI/Audio) and another for USB memory devices, providing unprecedented flexibility for modern workflow integration.
Enhanced Expansion System: While maintaining dual SRX expansion slots like the XV-2020, the SonicCell's expansion system benefits from the larger wave memory and more sophisticated sound architecture.
Technical Specifications
Physical Design & Construction
- Dimensions: 294mm (W) x 175mm (D) x 55mm (H) / 11-5/8" x 6-15/16" x 2-3/16"
- Weight: 1.2kg / 2 lbs 11 oz
- Form Factor: Desktop module (not rack-mountable)
- Display: 128 x 64 dot organic EL graphic display
- Power Supply: DC 9V via AC adapter (PSB-1U)
- Current Draw: 800mA
Sound Generation Architecture
- Polyphony: 128 voices maximum
- Parts: 16-part multitimbral
- Wave Memory: 128MB (16-bit linear equivalent)
- Sound Engine: State-of-the-art Roland synthesis with new waveform set
- Expansion Slots: 2 x SRX expansion board slots
- Sound Character: World-class acoustic instruments with ultimate expression and realism
Memory & Sound Banks
- Preset Patches: 896 + 256 (GM2) = 1,152 total preset patches
- User Patches: 256 user-programmable patches
- Preset Rhythm Sets: 32 + 9 (GM2) = 41 total preset rhythm sets
- User Rhythm Sets: 32 user-programmable rhythm sets
- Preset Performances: 64 preset performances
- User Performances: 64 user-programmable performances
- External Memory: USB memory support for additional storage
Effects Processing System
- Multi-Effects: 3 independent systems with 78 different effect types
- Chorus Effects: 3 different chorus types
- Reverb Effects: 5 different reverb types
- Input Effects: 6 specialized input effect types
- Mastering Effect: 3-band compressor for final output processing
- Effects Architecture: Professional-grade processing with independent routing
Audio Interface Specifications
- Input Channels: 1 stereo pair (configurable as MIC/GUITAR mono or LINE stereo)
- Output Channels: 1 stereo pair
- Signal Processing: 24-bit throughout (PC interface and AD/DA conversion)
- Sampling Frequencies: 44.1kHz, 48kHz, 96kHz (AD/DA conversion)
- Input Level Ranges:
- MIC: -50 to -30 dBu
- GUITAR: -30 to -10 dBu
- LINE: -30 to -10 dBu
- Output Level: -10 dBu nominal
- Input Impedance: Hi-Z guitar input, phantom power for mics
Connectivity & I/O
- Audio Outputs: L/MONO and R output jacks (1/4" phone)
- Headphone Output: Front panel 1/4" jack
- Audio Inputs:
- MIC input: XLR (phantom power) or 1/4" phone
- GUITAR input: 1/4" phone (Hi-Z)
- LINE inputs: L and R 1/4" phone jacks
- MIDI Ports: IN and OUT (standard DIN connectors)
- USB Ports:
- COMPUTER port (USB MIDI/Audio, requires Hi-Speed USB)
- MEMORY port (USB 2.0 Hi-Speed Flash Memory support)
Multimedia Playback Capabilities
- Standard MIDI Files: Format 0 and Format 1 compatibility
- Audio File Formats: WAV, AIFF, MP3 playback
- Playback Control: Stand-alone operation via USB memory
- Playlist Management: Software-based playlist creation and management
- Live Performance: Backing track playback with real-time control
Software & Computer Integration
- Included Software Bundle:
- SonicCell Editor (standalone and plug-in versions)
- Sound Librarian
- Playlist Editor
- USB drivers
- Cakewalk SONAR LE
- Operating System Support:
- Windows XP Home/Professional, Vista (32-bit only)
- Mac OS 10.4.3 or later
- System Requirements:
- CPU: Pentium/Celeron 1.4GHz+ (PC), PowerPC G4 1GHz+/Intel (Mac)
- RAM: 512MB minimum
- Display: 1280x800 minimum, 24-bit color
- USB 2.0 port required
Software Editor Compatibility
- Verified VSTi Hosts:
- Cakewalk SONAR LE (Windows)
- Cakewalk SONAR 6.2 (Windows)
- Steinberg Cubase 4 (Windows/Mac)
- Verified Audio Units Host:
- Apple Logic Pro 7.2 (Mac)
- Known Incompatible Hosts:
- Steinberg Cubase SX3
- MOTU Digital Performer 4.6
Performance & Specifications
- USB Compliance: USB 2.0 Hi-Speed required
- Chipset Recommendation: Intel chipset preferred
- Audio Latency: Optimized for real-time performance
- Computer CPU Relief: Reduces computer processor burden
- Stability: Enhanced performance through dedicated hardware processing
Included Accessories
- Documentation: Startup Guide and comprehensive Manual
- Software: Editor/Librarian CD-ROM and SONAR LE CD-ROM
- Hardware: Wrench, AC Adapter (PSB-1U), Power Cord, USB Cable
Optional Accessories
- Wave Expansion: SRX Series boards (over a dozen available)
- USB Memory: M-UF128 recommended
- Mounting: BKT-S (SonicCell stand) and PDS-10 bracket
- Stand: PDS-10 pad stand
Target Applications
- Computer-Based Production: Integrated synthesis and audio interface
- Live Performance: Backing track playback with real-time synthesis
- Home Recording: Complete recording solution with built-in sounds
- Educational: Comprehensive synthesis platform with professional software
- Professional Studio: High-quality sound module with audio interface capabilities
Key Advantages Over Previous Models
- All-in-One Solution: Synthesis + audio interface + multimedia player
- Professional Audio I/O: Multiple input types with phantom power
- Expanded Polyphony: 128 voices for complex arrangements
- Modern Connectivity: Dual USB ports for computer and memory
- Enhanced Visual Feedback: Graphic display vs. numeric displays
- Comprehensive Software: Professional recording software included
- Live Performance Ready: Stand-alone playback capabilities
- Future-Proof Design: USB 2.0 and modern software integration
