Behringer Odyssey

Duophonic Analog Synthesizer

DescriptionImagesTech specsAlternativeFAQRelated ArticlesComments

Odyssey 1Odyssey 2
Product Images: click to view fullsize version.
Behringer Odyssey
Behringer Odyssey
500.00 street price

The Behringer Odyssey is an analog synthesizer re-creation of the classic ARP Odyssey synthesizer. It features two VCOs with saw, triangle, and square waveforms, a 24 dB/octave low-pass filter, an ADSR envelope, and a noise generator. It also has a built-in arpeggiator, delay, and chorus effects.

Country of origin / production: China

  Recommend product to a friend

E-mail*
More info

Usage area
Synthesizer
Usage Design/ Form Factor
With Keys
Archetype
Analogue (A)
Polyphony
Monophonic
Voice Mode Mono
Voice Mode Duo
Multi Timbral Capacity
Monotimbral
Tone Generator / Sound Synthesis
Synthesis Method Analog Subtractive
Synthesis Method Frequency Modulation (FM)
Oscillators overall2
Oscillator Type Analog
Oscillators' hard sync
Waveform/ Spectral form (main generator) Pulse Width Modulation (PWM)
Waveform/ Spectral form (main generator) Saw
Waveform/ Spectral form (main generator) White Noise
Waveform/ Spectral form (main generator) Pink Noise
Filter
Voltage Controlled Filter (VCF)
Low-pass Filter (LPF)
2-pole
4-pole
12dB
24dB
Resonance
Filter auto-oscillation
Amplifier
Voltage Controlled Amplifier (VCA)
Envelope Generator (EG)
OSCADSR
ADSR
AR
Modulation
LFO: LFO Count1
LFO Waveforms
Square
Saw
Sample&Hold
Effects
Reverb
Chorus
Flanger
Delay
Sequencer
Max Step Count32
Pattern Sequencer
User Songs Templates64
Arpegiator/ Portamento
Arpegiator
Arpeggio User-defined Memory8
MIDI in/ out
IN
OUT
Keys
Type Semi-weighted
Velocity Sensitivity
Size3
Number of Keys37
Display
Display type LCD
Color resolution Monochrome
Built-in controllers
Slider/ Drawbar35
External controllers
Portamento
Foot Controller1
CV in1
Gate in1
Trigger in1
CV out1
Gate out1
Trigger out1
Audio out
Analogue: 1/4" (6.35mm)1
Analogue: 1/4" (6.35mm) headphones preamplified1
Analogue: XLR1
Computer Interfaces
USB USB PC Link
USB MIDI through USB
Power
Voltage 9V
Power Supply External
Amperage1.3 A
Case/ body
Metal
Color
Black
Production start2019

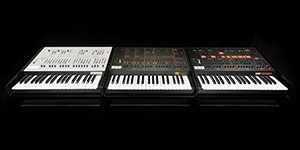

Korg ARP ODYSSEY
