street priceThe Novation Circuit Mono Station is a powerful, semi-modular synthesizer and sequencer designed for live performance and studio production. It combines the classic sound of analog synthesis with modern sequencing and performance controls. It features two independent analog synthesizer engines, each with its own sequencer, and a range of modulation options. It also includes a built-in arpeggiator, an effects section, and a range of performance controls.
Favorites
Recommend product to a friend
| Usage area | |
|---|---|
| Synthesizer | |
| Sound Module/ Tone Generator | |
| Usage Design/ Form Factor | |
| Without Keys, Desktop | |
| Archetype | |
| Hybrid, Digital+Analog | |
| Polyphony | |
| Paraphonic | |
| Voices | 1 |
| Multi Timbral Capacity | |
| Monotimbral | |
| Tone Generator / Sound Synthesis | |
| Synthesis Method | Analog Subtractive |
| Oscillators overall | 2 |
| Oscillator Type | VCO (Voltage Controlled Oscillator) |
| Oscillators per voice | 2 |
| Waveform/ Spectral form (main generator) | Sine |
| Waveform/ Spectral form (main generator) | Square |
| Waveform/ Spectral form (main generator) | Pulse Width Modulation (PWM) |
| Waveform/ Spectral form (main generator) | Triangle |
| Waveform/ Spectral form (main generator) | Saw |
| Waveform/ Spectral form (main generator) | White Noise |
| Programs/ Voices/ Timbres | |
| Patches | 64 |
| Filter | |
| High-pass Filter (HPF) | |
| Low-pass Filter (LPF) | |
| Band-pass Filter (BPF) | |
| 2-pole | |
| 4-pole | |
| 12dB | |
| 24dB | |
| Resonance | |
| Envelope Generator (EG) | |
| ADSR | |
| Modulation | |
| LFO: LFO Count | 1 |
| LFO Waveforms | |
| Square | |
| Triangle | |
| Saw | |
| Sample&Hold | |
| Sequencer | |
| Parts count | 3 |
| MIDI in/ out | |
| IN | |
| OUT | |
| THRU count | 1 |
| Pads Matrix | |
| Pads Count | 32 |
| Pads Count, vertical | 4 |
| Pads Count, horizontal | 8 |
| Multicolor Pads | |
| Velocity | |
| Variable Touch Response | |
| External controllers | |
| CV out | 2 |
| Gate out | 1 |
| Audio out | |
| Mono | |
| Analogue: 1/4" (6.35mm) | 1 |
| Analogue: 1/8" (3.5mm) headphones preamplified | 1 |
| Audio in | |
| Analog 1/4" | 1 |
| Computer Interfaces | |
| USB | USB PC Link |
| USB | MIDI through USB |
| Case/ body | |
| Metal | |
| Color | |
| Black | |
| Production start | 2017 |

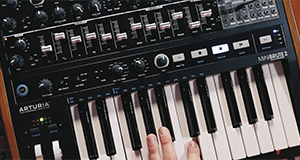

The Arturia MiniBrute 2s is a powerful and versatile analog synthesizer that combines the classic design of the original MiniBrute with a host of new features. It features two oscillators, two sub-oscillators, a Steiner-Parker filter, an envelope...
